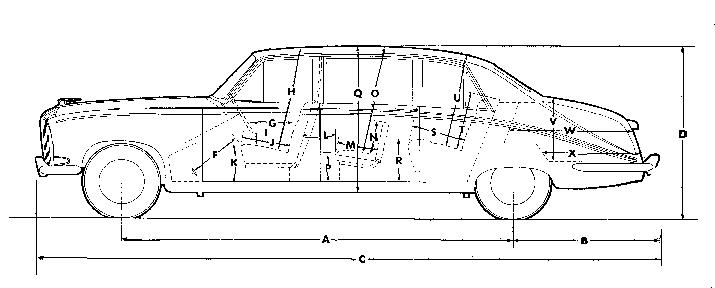

| A | Wheelbase | 141in | 358cm |
|---|---|---|---|
| B | Rear Overhang | 51.5in | 131cm |
| C | Overall Length | 226in | 574cm |
| D | Overall Height | 63.75in | 161cm |
| E | Overall Width | 77.5in | 197cm |
| F | Pedals to seat cushion | 17in | 43cm |
| G | Steering wheel to seat squab | 12-14in | 30-36cm |
| H | Front headroom | 39.5in | 100cm |
| I | Steering wheel rim to seat | 4.75in | 12cm |
| J | Front seat depth | 18.75in | 47cm |
| K | Front seat height | 16in | 40cm |
| L | Occasional seat to division | 12.75in | 32cm |
| M | Occasional seat depth | 14in | 36cm |
| N | Occasional seat squab height | 13.75in | 35cm |
| O | Occasional seat headroom | 37.5in | 95cm |
| P | Occasional seat height | 15.25 | 38cm |
| Q | Rear floor to roof | 47in | 119cm |
| R | Rear seat height | 15.5in | 39cm |
| S | Rear seat depth | 20.5in | 52cm |
| T | Rear seat squab height | 24in | 61cm |
| U | Rear seat headroom | 36.75in | 93cm |
| V | Maximum Luggage compartment depth | 29in | 73cm |
| W | Maximum Luggage compartment length | 55in | 140cm |
| X | Luggage compartment shelf to aperture | 37.5in | 95cm |

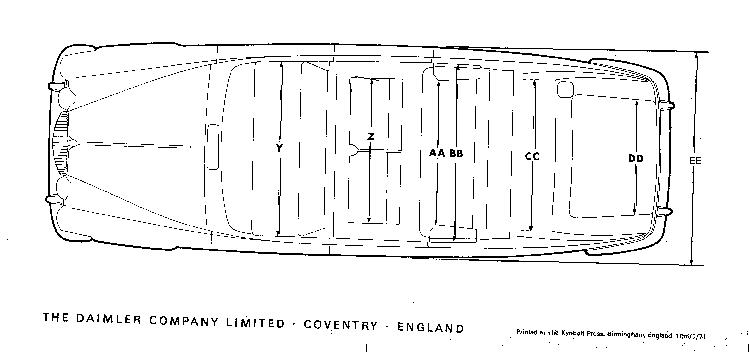

| Y | Front seat width | 64.5in | 163cm |
| Z | Occasional seats total width | 53in | 134cm |
| AA | Width between armrests | 54.5in | 138cm |
| BB | Shoulder room | 62.5in | 158cm |
| CC | Maximum Luggage compartment width | 43in | 109cm |
| DD | Aperture width | 40in | 101cm |
| EE | Total width | 65.5in | 165cm |
